The filter cartridges are automatically clean-able, meanwhile can operate constantly to supply oil to downstream facilities.
Applications
Delayed coking facility, hydrogenation cracking facility and hydrogenation refining facility, etc.
Features and Benefits

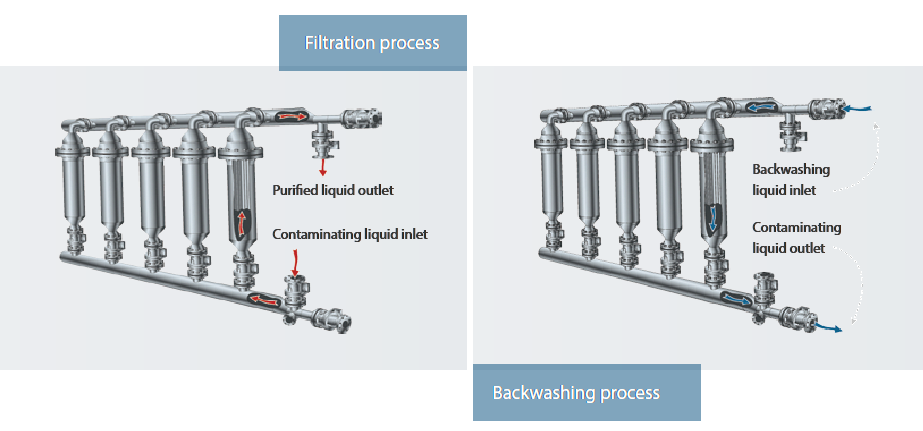

+ High-pressure backwashing to thoroughly remove the impurities on filter cartridges with long service life
+ High efficient filter cartridges made of sintered metal materials to remove the impurities in raw oil, and realize regener-ation by high-pressure gas and auxiliary liquid back exploring cleaning or filtered liquid backwashing technologies
+ High strength, anti-corrosion, with high precision of 5μm
+ Automatic cleanable and adjustable
+ Low operation cost without any consumables, simple to operate and manage
+ Differential pressure adjustable
+ Remote control (PLC or DCS)
Technical Specifications
Treatment Capacity:5t/h~300t/h
Filter rating:5~200um
Filter efficiency:＞98%
?
?
